MICROCHIP APT13F120S

MICROCHIP APT13F120S

Name: MICROCHIP APT13F120S
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APT13F120S

Package: D3PAK

Customer #:

Description: 1.2kV 14A 1.2Ω@10V,7A 5V 1 N-channel 625W D3PAK Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APT13F120S

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

D3PAK

Drain to Source Voltage:

1.2kV

Current - Continuous Drain(Id):

14A

Operating Temperature -:

-55℃~+150℃@(Tj)

RDS(on):

1.2Ω@10V,7A

Gate Threshold Voltage (Vgs(th)):

Number:

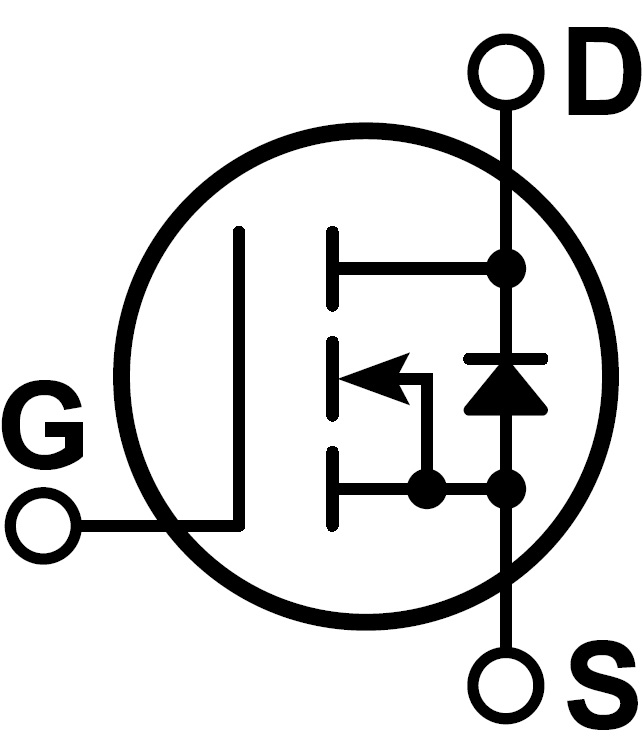

1 N-channel

Input Capacitance(Ciss):

4.765nF@25V

Pd - Power Dissipation:

625W

Gate Charge(Qg):

145nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	400
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
