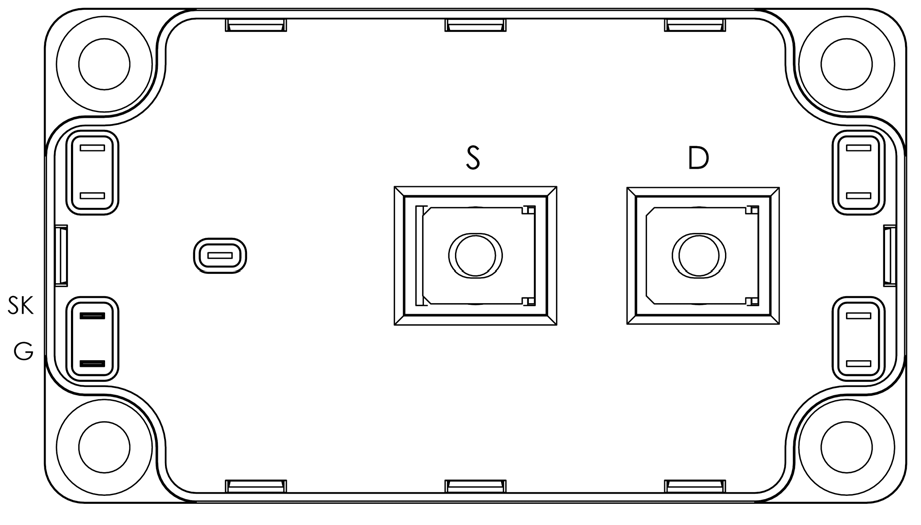

MICROCHIP APTM100UM65SAG

MICROCHIP APTM100UM65SAG

Name: MICROCHIP APTM100UM65SAG
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APTM100UM65SAG

Package: -

Customer #:

Description: 1kV 145A 78mΩ@10V,72.5A 5V 1 N-channel 3.25kW Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APTM100UM65SAG

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

Drain to Source Voltage:

1kV

Current - Continuous Drain(Id):

145A

Operating Temperature -:

-40℃~+150℃@(Tj)

RDS(on):

78mΩ@10V,72.5A

Gate Threshold Voltage (Vgs(th)):

Number:

1 N-channel

Input Capacitance(Ciss):

28.5nF@25V

Pd - Power Dissipation:

3.25kW

Gate Charge(Qg):

1.068uC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
