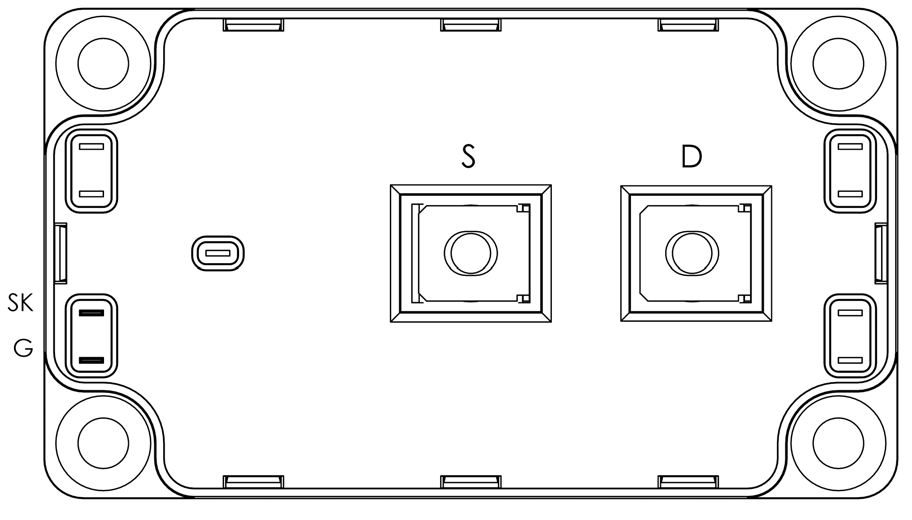

MICROCHIP APTM20UM04SAG

MICROCHIP APTM20UM04SAG

Name: MICROCHIP APTM20UM04SAG
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APTM20UM04SAG

Package: -

Customer #:

Description: 200V 417A 5mΩ@10V,208.5A 3V 1 N-channel 1.56kW Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APTM20UM04SAG

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

Drain to Source Voltage:

200V

Current - Continuous Drain(Id):

417A

Operating Temperature -:

-40℃~+150℃@(Tj)

RDS(on):

5mΩ@10V,208.5A

Gate Threshold Voltage (Vgs(th)):

Number:

1 N-channel

Pd - Power Dissipation:

1.56kW

Input Capacitance(Ciss):

28.8nF@25V

Gate Charge(Qg):

560nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
