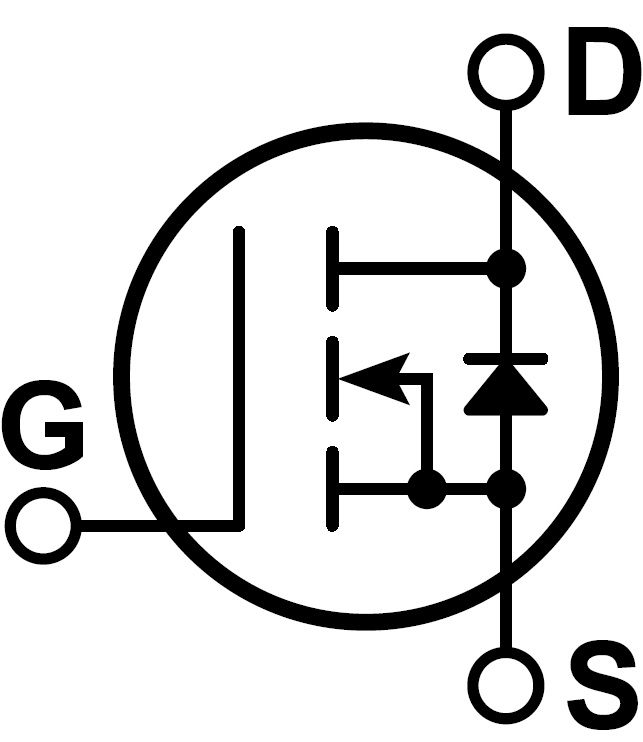

MICROCHIP APT14F100S

MICROCHIP APT14F100S

Name: MICROCHIP APT14F100S
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APT14F100S

Package: D3PAK

Customer #:

Description: 1kV 14A 980mΩ@10V,7A 5V 1 N-channel 500W D3PAK Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APT14F100S

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

D3PAK

Drain to Source Voltage:

1kV

Current - Continuous Drain(Id):

14A

Operating Temperature -:

-55℃~+150℃@(Tj)

RDS(on):

980mΩ@10V,7A

Gate Threshold Voltage (Vgs(th)):

Number:

1 N-channel

Pd - Power Dissipation:

500W

Input Capacitance(Ciss):

3.965nF@25V

Gate Charge(Qg):

120nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	400
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
