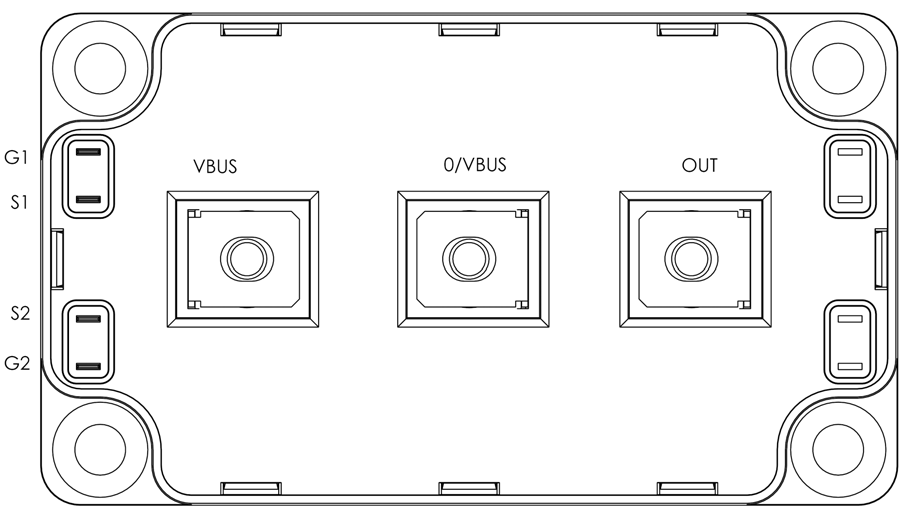

MICROCHIP APTM20AM06SG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM20AM06SG
Package:
-
Customer #:
Description:
200V 300A 7.2mΩ@10V 5V@6mA 2 N-Channel 1.25kW Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM20AM06SG
Products Specifications
Manufacturer:
Package:
-
Configuration:
-
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
300A
Operating Temperature -:
-40℃~+150℃
RDS(on):
7.2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@6mA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
580pF
Number:
2 N-Channel
Output Capacitance(Coss):
6.03nF
Input Capacitance(Ciss):
18.5nF
Pd - Power Dissipation:
1.25kW
Gate Charge(Qg):
325nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
