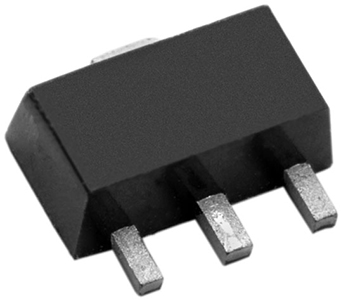

MICROCHIP TP2520N8-G
Manufacturer:
MICROCHIP
Mfr. Part #:
TP2520N8-G
Package:
SOT-89-3
Customer #:
Key Attributes:
MOSFET P-CH 200V 750mA SOT-89-3
Description:
200V 750mA 12Ω@10V,200mA 2.4V 1 P-Channel 1.6W SOT-89-3 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP TP2520N8-G
Products Specifications
Manufacturer:
Package:
SOT-89-3
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
750mA
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
12Ω@10V,200mA
Gate Threshold Voltage (Vgs(th)):
2.4V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
10pF
Number:
1 P-Channel
Output Capacitance(Coss):
20pF
Input Capacitance(Ciss):
125pF@25V
Pd - Power Dissipation:
1.6W
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
