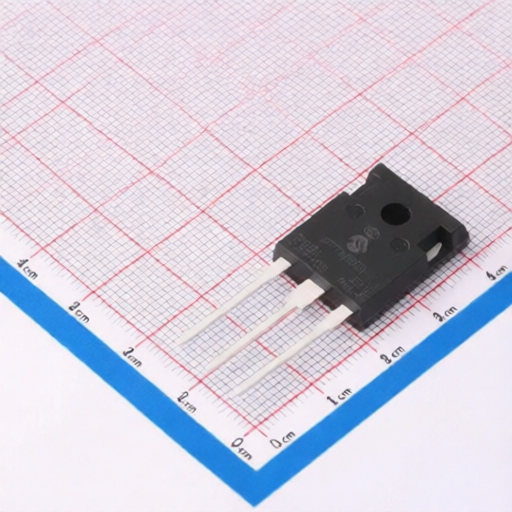

MICROCHIP APT7M120B

MICROCHIP APT7M120B

Name: MICROCHIP APT7M120B
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APT7M120B

Package: TO-247-3

Customer #:

Key Attributes: MOSFET N-CH 1.2kV 22A TO-247-3

Description: N-Channel 1.2kV 22A 690W Through Hole TO-247-3

Datasheet: MICROCHIP APT7M120B

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

TO-247-3

Drain to Source Voltage:

1.2kV

Current - Continuous Drain(Id):

22A

Operating Temperature -:

-55℃~+150℃

RDS(on):

570mΩ@10V

Gate Threshold Voltage (Vgs(th)):

5V@2.5mA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

200pF

Number:

1 N-channel

Output Capacitance(Coss):

1.08nF

Pd - Power Dissipation:

690W

Input Capacitance(Ciss):

6.2nF

Gate Charge(Qg):

290nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	30
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
