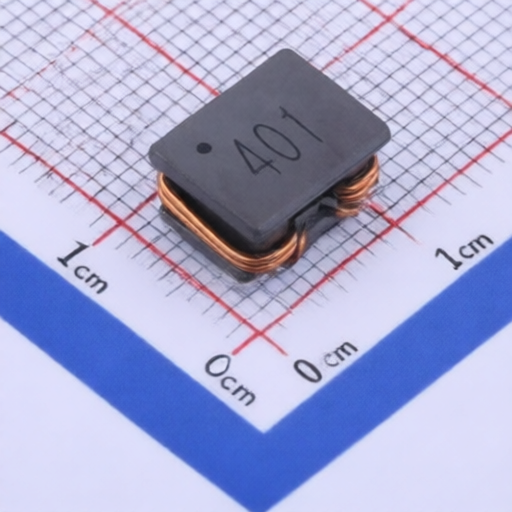

MetalLions ACM100805F-401T70
Manufacturer:
MetalLions
Asian Brands
Mfr. Part #:
ACM100805F-401T70
Package:
SMD-4P,10x8mm
Customer #:
Key Attributes:
CMC 7A 2LN 400Ω SMD
Description:
2Line Common Mode Choke Surface Mount 10x8x5mm 400Ω@100MHz 7A DCR 6.5mΩ
Datasheet:
MetalLions ACM100805F-401T70
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,10x8mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
6.5mΩ
Voltage Rating - DC:
50V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
