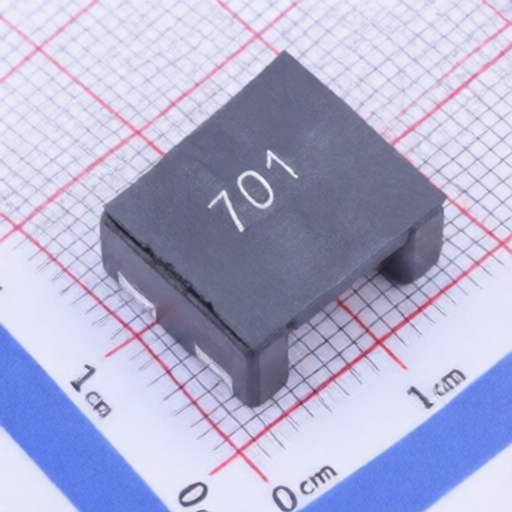

MetalLions ACM1513F-701T100
Manufacturer:
MetalLions
Asian Brands
Mfr. Part #:
ACM1513F-701T100
Package:
SMD-4P,15x13mm
Customer #:
Key Attributes:
CMC 10A 2LN 700Ω SMD
Description:
2Line Common Mode Choke Surface Mount 15x13x6mm 700Ω@100MHz 10A DCR 7mΩ
Datasheet:
MetalLions ACM1513F-701T100
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,15x13mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
7mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 350 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MetalLions
385 Products
MetalLions Electronics Co., Ltd.
(hereinafter referred to as "MetalLions") was founded in 1998. The founding team has been deeply involved in the field of inductance and magnetic material science for more than 30 years, and has always been firmly focused on the research and development of materials, technology, production processes and equipment for inductance products. The company's products include chip power inductors, precision winding inductors, RF inductors, common mode inductors, etc., which are widely used in automotive electronics, network communications, Internet of Things, instrumentation, security, smart home, medical equipment, LED lighting, photovoltaic energy storage, consumer digital and other fields. MetalLions produces about 10 billion inductors of various categories annually. MetalLions provides not only high-quality products, but also provides customers with comprehensive and optimal inductance solutions.
