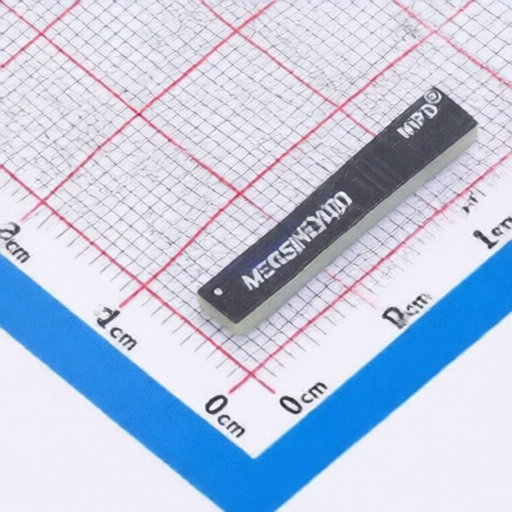

MEGSINE MAN0826C230
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MAN0826C230
Package:
SMD,23x3.5mm
Customer #:
Key Attributes:
GSM/CDMA/LTE/Cat1 Chip Antenna
Description:
RF ANTENNA 4G Surface Mount,23x3.5mm
Datasheet:
MEGSINE MAN0826C230
Products Specifications
Category:
Manufacturer:
Package:
SMD,23x3.5mm
Antenna Type:
-
Standing Poppy:
-
Peak Gain:
3.04dB
Bandwidth:
262MHz;460MHz;390MHz
length:
23mm
Height:
3.5mm
working temperature:
-40℃~+80℃
Frequency(Center/Band):
829MHz;1.94GHz;2.495GHz
Width:
1.6mm
Impedance:
50Ω
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517710000 |
| USHTS | 8517790000 |
| TARIC | 8517710000 |
| CAHTS | 8517710000 |
| BRHTS | 85177110 |
| INHTS | 85177100 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
