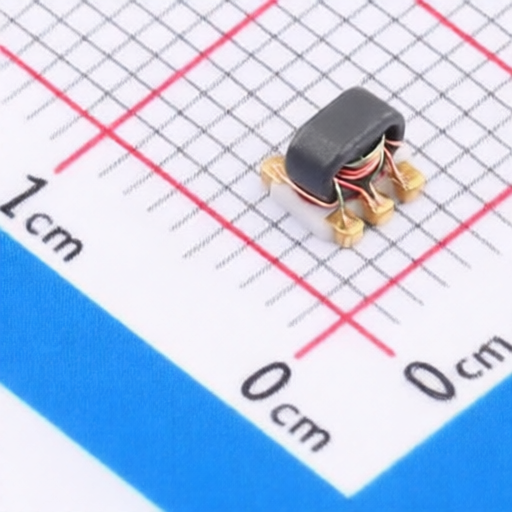

MEGSINE MG-TC4-1T
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MG-TC4-1T
Package:
SMD-5P,3.8x3.8mm
Customer #:
Key Attributes:
RF Transformer 50Ω 0.5~300MHz 4:1
Description:
180° 500kHz~300MHz 4:1 2dB SMD-5P,3.8x3.8mm Balun RoHS
Datasheet:
MEGSINE MG-TC4-1T
Products Specifications
Category:
Manufacturer:
Package:
SMD-5P,3.8x3.8mm
Amplitude Balance (Max):
1dB
Operating Temperature:
-40℃~+85℃
Phase Difference:
180°
Frequency Range:
500kHz~300MHz
Impedance - Unbalanced/Balanced:
4:1
Insertion Loss:
2dB
Common Mode Rejection Ratio(CMRR):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504319000 |
| USHTS | 8504312000 |
| TARIC | 8504318090 |
| CAHTS | 8504310020 |
| BRHTS | 85043199 |
| INHTS | 85043100 |
| MXHTS | 8504.31.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
