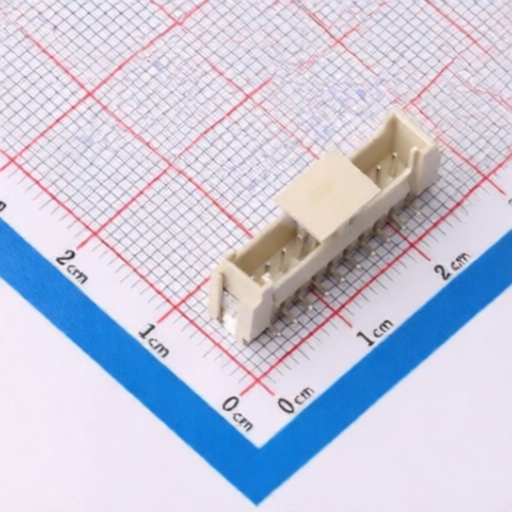

Megastar ZX-HY2.0-10PLT
Manufacturer:
Megastar
Mfr. Part #:
ZX-HY2.0-10PLT
Package:
SMD,P=2mm
Customer #:
Description:
Connector Header 10 position 2mm Pitch 2A Surface Mount,Vertical -25℃~+85℃
Datasheet:
Megastar ZX-HY2.0-10PLT
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
6.1mm
Reference Series:
HY
Pins Structure:
1x10P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Auxiliary Solder Pin
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
10
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
24mm
Z-Height of the Board:
8.28mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
