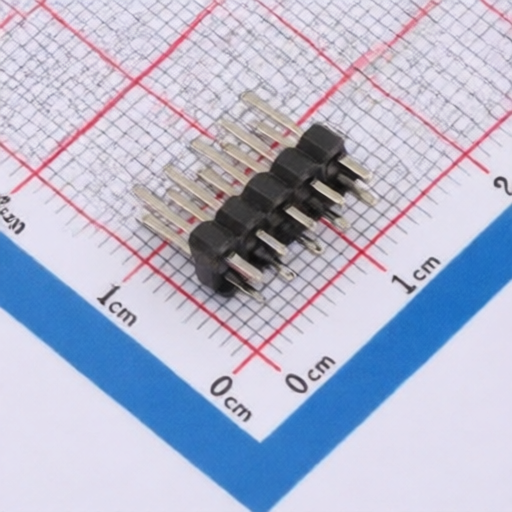

Megastar ZX-PZ2.54-2-5PZZ
Manufacturer:
Megastar
Asian Brands
Mfr. Part #:
ZX-PZ2.54-2-5PZZ
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 10POS 2.54mm DUAL ROW TH
Description:
Pin Header 10 Position 2.54mm Pitch Dual Row Through Hole -40℃~+105℃
Datasheet:
Megastar ZX-PZ2.54-2-5PZZ
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Number of Pins:
10P
Pins Structure:
2x5P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Voltage Rating (Max):
1kV
Length of End Connection Pin:
3mm
Current Rating-Signal:
3A
Number of Rows:
2
Mounting Type:
Through Hole
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
