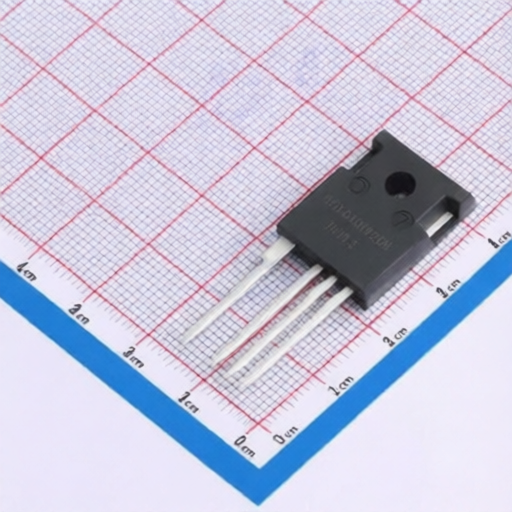

Megain MGX40N120N
Manufacturer:
Megain
Asian Brands
Mfr. Part #:
MGX40N120N
Package:
TO-247-4
Customer #:
Key Attributes:
1200V N-Channel Silicon Carbide Power MOSFET
Description:
N-Channel 1.2kV 57A 255W Through Hole TO-247-4
Datasheet:
Megain MGX40N120N
Products Specifications
Manufacturer:
Package:
TO-247-4
Configuration:
-
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
57A
RDS(on):
35mΩ@18V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
1.6V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
9pF
Input Capacitance(Ciss):
1.456nF
Output Capacitance(Coss):
96pF
Pd - Power Dissipation:
255W
Gate Charge(Qg):
115nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
