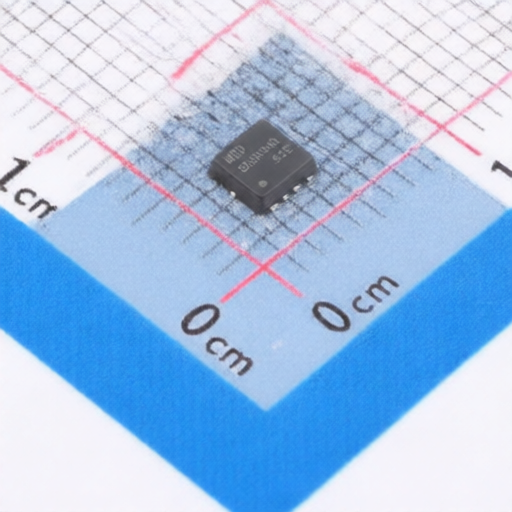

MDD(Microdiode Semiconductor) MDDG03R04Q
Manufacturer:
MDD(Microdiode Semiconductor)
Asian Brands
Mfr. Part #:
MDDG03R04Q
Package:
PDFN-8L(3x3)
Customer #:
Key Attributes:
MOSFET N-CH 30V 80A PDFN-8L(3x3)
Description:
N-Channel 30V 80A 30W Surface Mount PDFN-8L(3x3)
Datasheet:
MDD(Microdiode Semiconductor) MDDG03R04Q
Products Specifications
Manufacturer:
Package:
PDFN-8L(3x3)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3.5mΩ@10V;5.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
19pF
Input Capacitance(Ciss):
770pF
Output Capacitance(Coss):
468pF
Pd - Power Dissipation:
30W
Gate Charge(Qg):
70nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
