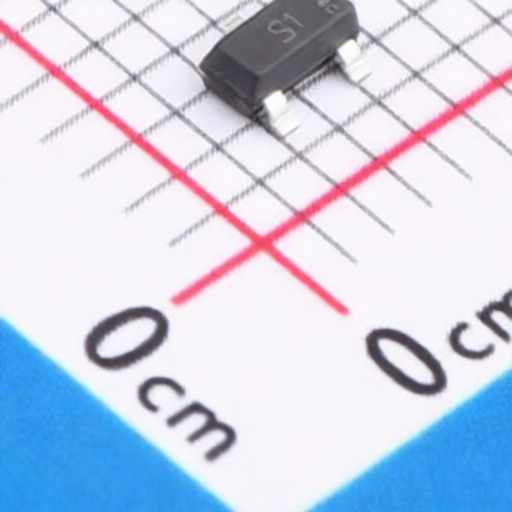

MDD(Microdiode Semiconductor) MDD2301
Manufacturer:
MDD(Microdiode Semiconductor)
Asian Brands
Mfr. Part #:
MDD2301
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 3.8A SOT-23
Description:
P-Channel 20V 3.8A 900mW Surface Mount SOT-23
Datasheet:
MDD(Microdiode Semiconductor) MDD2301
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.8A
Operating Temperature -:
-50℃~+150℃
RDS(on):
33mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
700mV@250uA
Reverse Transfer Capacitance (Crss@Vds):
45pF
Number:
1 P-Channel
Output Capacitance(Coss):
50pF
Input Capacitance(Ciss):
330pF
Pd - Power Dissipation:
900mW
Gate Charge(Qg):
800pC
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
