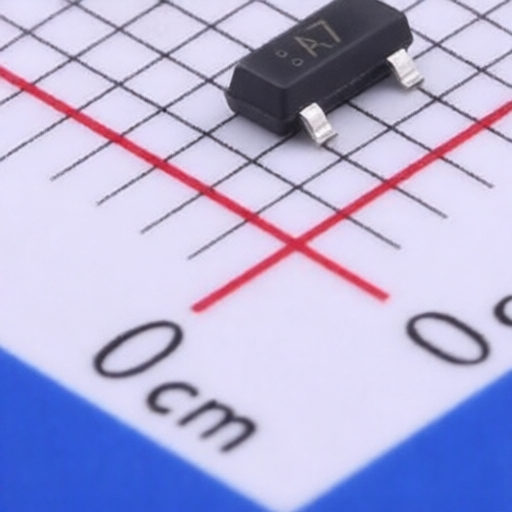

MDD(Microdiode Semiconductor) BAV99
Manufacturer:
MDD(Microdiode Semiconductor)
Mfr. Part #:
BAV99
Package:
SOT-23
Customer #:
Description:
Diode Array 1 Pair Series Connection 70V 200mA Surface Mount SOT-23
Datasheet:
MDD(Microdiode Semiconductor) BAV99
Products Specifications
Manufacturer:
Package:
SOT-23
Non-Repetitive Peak Forward Surge Current:
2A
Reverse Leakage Current (Ir):
2.5uA@70V
Reverse Recovery Time (trr):
6ns
Operating Junction Temperature Range:
-
Voltage - DC Reverse (Vr) (Max):
70V
Diode Configuration:
1 Pair Series Connection
Pd - Power Dissipation:
225mW
Voltage - Forward(Vf@If):
1.25V@150mA
Current - Rectified:
200mA
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MDD(Microdiode Semiconductor)
2035 Products
Microdiode Semiconductor (Shenzhen) Co., Ltd
(hereinafter referred to as "MDD") is a national high-tech enterprise specializing in the research and development, design, packaging testing, and sales of semiconductor power devices. The company has been deeply involved in the semiconductor field for 16 years, always adhering to product technology as the driving force and customer demand as the core, creating a complete series of highly reliable and high-performance product service matrices covering MOSFET, diode, transistor, rectifier bridge, SiC, and other fields. The products are widely used in new energy vehicles, industrial control, consumer electronics, communication, home appliances, medical, lighting, security, instruments and meters, and other fields, serving over 40 countries and regions worldwide.
