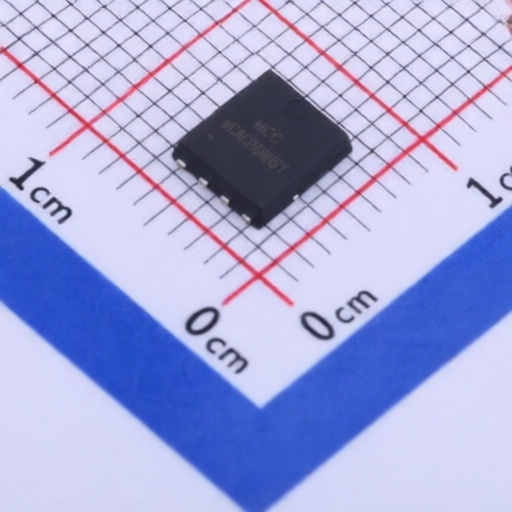

MCC MCAC80N06Y-TP

MCC MCAC80N06Y-TP

Name: MCC MCAC80N06Y-TP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MCAC80N06Y-TP

Package: DFN(5x6)

Customer #:

Key Attributes: Split Gate Trench MOSFET Technology

Description: 60V 80A 3mΩ@10V 1.7V@250uA 85W DFN(5x6) Single FETs, MOSFETs RoHS

Datasheet: MCC MCAC80N06Y-TP

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MCC

Package:

DFN(5x6)

Drain to Source Voltage:

60V

Current - Continuous Drain(Id):

80A

Operating Temperature -:

-55℃~+150℃

RDS(on):

3mΩ@10V

Gate Threshold Voltage (Vgs(th)):

1.7V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

26pF

Number:

Output Capacitance(Coss):

810pF

Input Capacitance(Ciss):

3.783nF

Pd - Power Dissipation:

85W

Gate Charge(Qg):

62nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
