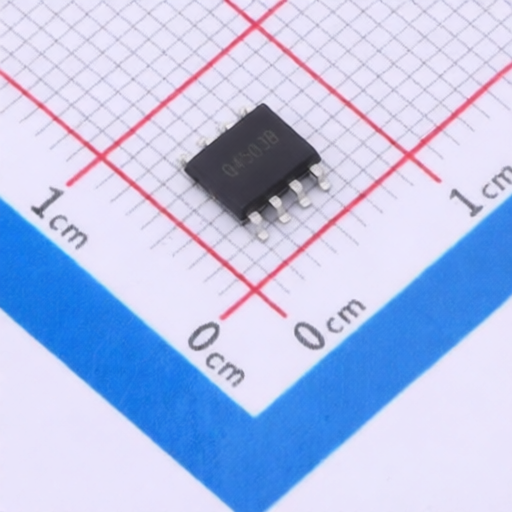

MCC MCQ4503B-TP

Name: MCC MCQ4503B-TP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MCQ4503B-TP

Package: SOP-8

Customer #:

Description: 30V 5.6A 55mΩ@10V 1.5V@250uA 1 N-Channel + 1 P-Channel 2W SOP-8 Single FETs, MOSFETs RoHS

Datasheet: MCC MCQ4503B-TP

Products Specifications

Manufacturer:

MCC

Package:

SOP-8

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

5.6A

RDS(on):

55mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

1.5V@250uA

Type:

N-Channel + P-Channel

Reverse Transfer Capacitance (Crss@Vds):

36pF@15V

Number:

1 N-Channel + 1 P-Channel

Pd - Power Dissipation:

Input Capacitance(Ciss):

535pF@15V

Gate Charge(Qg):

7.2nC@10V

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
