MCC MCACL200N04Y-TP

MCC MCACL200N04Y-TP

Name: MCC MCACL200N04Y-TP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MCACL200N04Y-TP

Package: DFN5060

Customer #:

Description: 40V 200A 1.35mΩ@10V,20A 2.5V 1 N-channel 120W DFN5060 Single FETs, MOSFETs RoHS

Datasheet: MCC MCACL200N04Y-TP

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MCC

Package:

DFN5060

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

200A

Operating Temperature -:

-55℃~+150℃@(Tj)

RDS(on):

1.35mΩ@10V,20A

Gate Threshold Voltage (Vgs(th)):

2.5V

Number:

1 N-channel

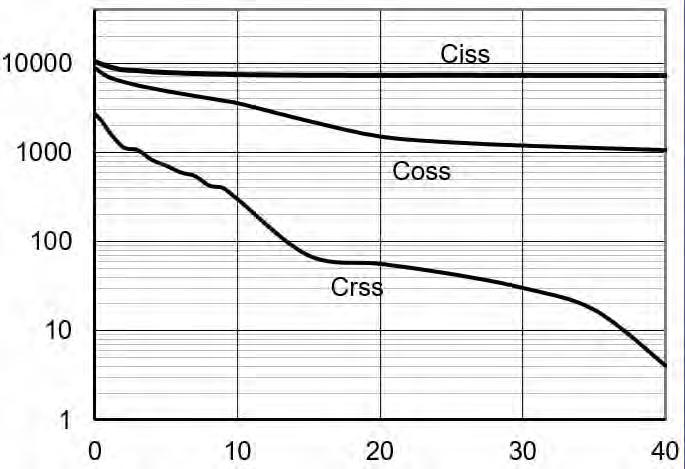

Input Capacitance(Ciss):

7.1nF@25V

Pd - Power Dissipation:

120W

Gate Charge(Qg):

132nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
