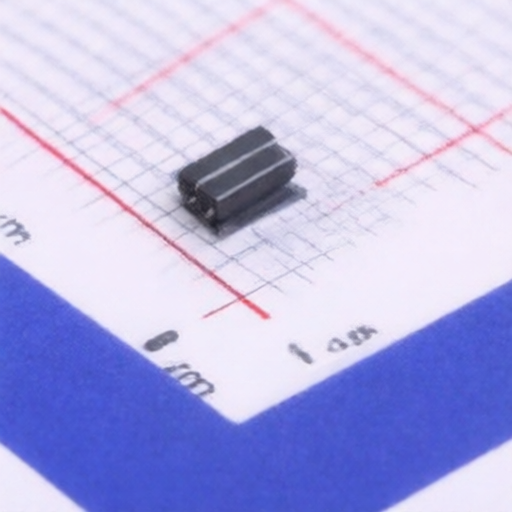

MCC SI2302A-TP
Manufacturer:
MCC
Mfr. Part #:
SI2302A-TP
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 3A SOT-23
Description:
N-Channel 20V 3A 1.25W Surface Mount SOT-23
Datasheet:
MCC SI2302A-TP
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
55mΩ@4.5V,3.6A
Gate Threshold Voltage (Vgs(th)):
650mV
Reverse Transfer Capacitance (Crss@Vds):
45pF@10V
Number:
1 N-channel
Input Capacitance(Ciss):
237pF@10V
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MCC
1527 Products
Micro Commercial Components (MCC) is a global supplier and manufacturer of commodity type and state-of-the-art innovative discrete semiconductors. Micro Commercial Components product groups include general purpose rectifiers, bridge rectifiers, transient voltage suppressors, as well as switching and Schottky diodes. Micro Commercial Components products are available in various axial leaded and surface mount packages.
