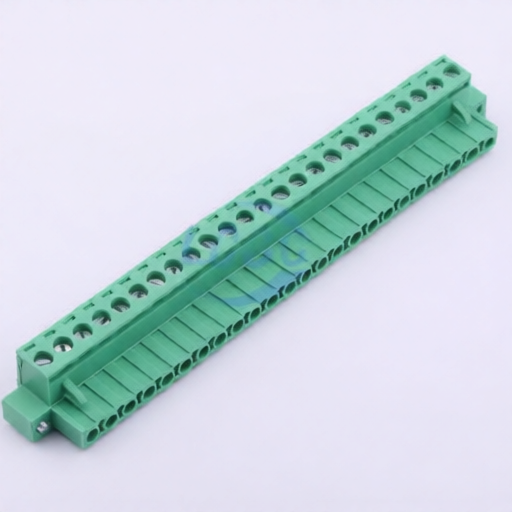

MAX MX2EDGKM-5.08-24P-GN01-Cu-Y-A
Manufacturer:
MAX
Asian Brands
Mfr. Part #:
MX2EDGKM-5.08-24P-GN01-Cu-Y-A
Package:
P=5.08mm
Customer #:
Key Attributes:
24POS 5.08mm
Description:
24 Position 5.08mm Pitch
Datasheet:
MAX MX2EDGKM-5.08-24P-GN01-Cu-Y-A
Products Specifications
Manufacturer:
Package:
P=5.08mm
Wire Gauge - mm2:
2.5
Number of Pins:
24P
Wire Gauge - AWG:
12~24
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
24
Current Rating:
15A
Color:
Green
Outlet Direction (Vertical Basis):
Horizontal Termination
Connection Type:
Screw Connection (M2.5)
Pitch:
5.08mm
Connector Type:
-
Number of Rows:
1
Pin Structure:
1x24P
Termination Style:
Screw
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 150 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
