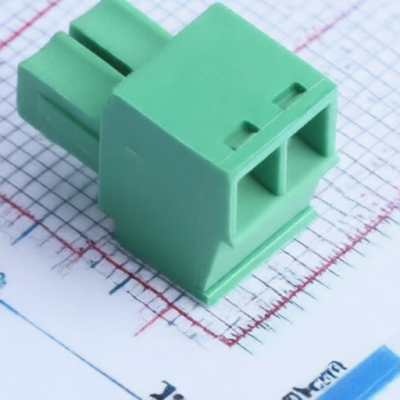

MAX MX15EDGK-3.5-02P-GN01-Cu-Y-A
Manufacturer:
MAX
Asian Brands
Mfr. Part #:
MX15EDGK-3.5-02P-GN01-Cu-Y-A
Package:
P=3.5mm
Customer #:
Key Attributes:
TERM BLOCK PLUG 2POS 3.5mm
Description:
2 Position Male Plug 3.5mm Pitch
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
1.5
Number of Pins:
2P
Wire Gauge - AWG:
16~28
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Connection (M2)
Pitch:
3.5mm
Connector Type:
Male Plug
Number of Rows:
1
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MAX
1438 Products
Founded in 2014, Cixi Maixu Electronics Co., Ltd. is an electronic component enterprise specializing in the production of terminal blocks and connectors.
The company covers an area of 1,000 square meters, with a workshop area of 5,000 square meters and more than 100 employees. Our company has 8 Haitian injection molding machines, 10 stamping machines, more than 30 automatic machines, and various processing equipment.
The company has passed CE and ISO9001 quality management system certification and CE certification, and its products are exported to more than 30 countries and have been well recognized by customers in India, Turkey, Iran, Brazil, and Germany.
The company's terminals are mainly used in instrumentation, industrial automation, electric power, solar controllers, switching power supplies, security, measuring instruments, and other industries.
