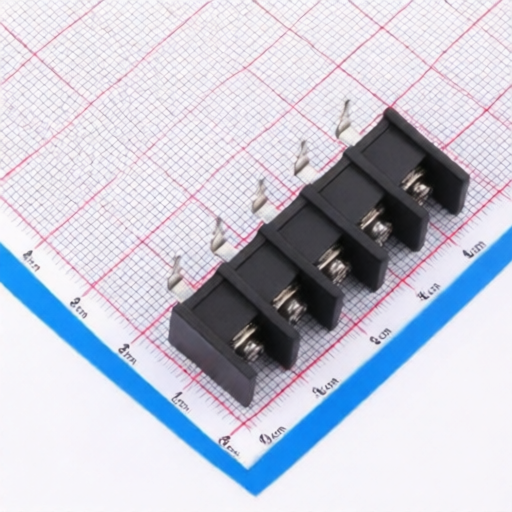

MAX MX35R-8.25-05P-BK01-Cu-S-A
Manufacturer:
MAX
Asian Brands
Mfr. Part #:
MX35R-8.25-05P-BK01-Cu-S-A
Package:
Through Hole,Right Angle,P=8.25mm
Customer #:
Key Attributes:
TERM BLK BARRIER 5CIRCUIT 8.25mm
Description:
5 Position Barrier Block Connector 12~22 AWG 300V 20A Through Hole, Right Angle
Datasheet:
MAX MX35R-8.25-05P-BK01-Cu-S-A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=8.25mm
Number of Positions or Pins:
1x5P
Number of Pins:
5P
Pin Location:
Mid Terminal
Barrier Type:
2-Side
voltage:
300V
Number of Rows:
1
Wire Gauge - mm2:
2.5
Pitch:
8.25mm
Number of PINs Per Row:
5
Operating Temperature:
-40℃~+105℃
Current Rating:
20A
Color:
Black
Screw Specification:
M3
Wire Gauge - AWG:
12~22
Mounting Type:
Right-Angle Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MAX
1438 Products
Founded in 2014, Cixi Maixu Electronics Co., Ltd. is an electronic component enterprise specializing in the production of terminal blocks and connectors.
The company covers an area of 1,000 square meters, with a workshop area of 5,000 square meters and more than 100 employees. Our company has 8 Haitian injection molding machines, 10 stamping machines, more than 30 automatic machines, and various processing equipment.
The company has passed CE and ISO9001 quality management system certification and CE certification, and its products are exported to more than 30 countries and have been well recognized by customers in India, Turkey, Iran, Brazil, and Germany.
The company's terminals are mainly used in instrumentation, industrial automation, electric power, solar controllers, switching power supplies, security, measuring instruments, and other industries.
