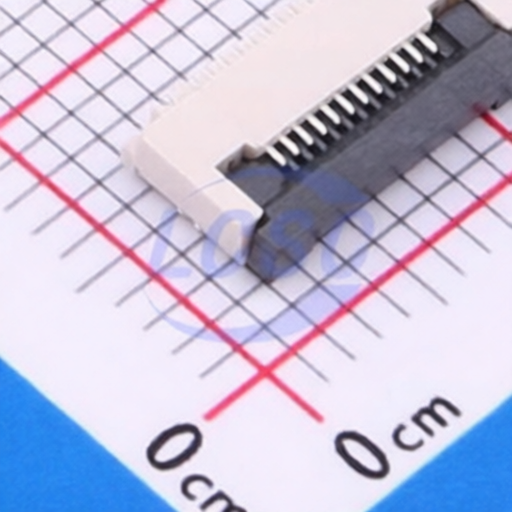

MAX MXFPCW01-0501-12P-20H-A
Manufacturer:
MAX
Asian Brands
Mfr. Part #:
MXFPCW01-0501-12P-20H-A
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 12POS 0.5mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 12 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle -40℃~+85℃
Datasheet:
MAX MXFPCW01-0501-12P-20H-A
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-40℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
12P
Pitch:
0.5mm
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MAX
1438 Products
Founded in 2014, Cixi Maixu Electronics Co., Ltd. is an electronic component enterprise specializing in the production of terminal blocks and connectors.
The company covers an area of 1,000 square meters, with a workshop area of 5,000 square meters and more than 100 employees. Our company has 8 Haitian injection molding machines, 10 stamping machines, more than 30 automatic machines, and various processing equipment.
The company has passed CE and ISO9001 quality management system certification and CE certification, and its products are exported to more than 30 countries and have been well recognized by customers in India, Turkey, Iran, Brazil, and Germany.
The company's terminals are mainly used in instrumentation, industrial automation, electric power, solar controllers, switching power supplies, security, measuring instruments, and other industries.
