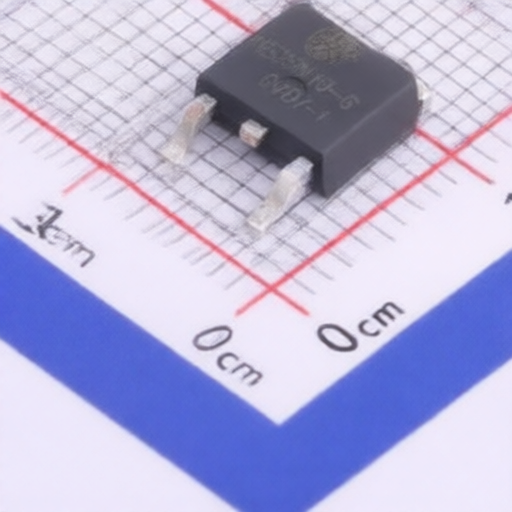

MATSUKI ME35N10-G
Manufacturer:
MATSUKI
Asian Brands
Mfr. Part #:
ME35N10-G
Package:
TO-252-2
Customer #:
Description:
100V 28.1A 17mΩ@10V,20A 3V 1 N-channel 27.8W TO-252-2 Single FETs, MOSFETs RoHS
Datasheet:
MATSUKI ME35N10-G
Products Specifications
Manufacturer:
Package:
TO-252-2
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
28.1A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
17mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
3V
Reverse Transfer Capacitance (Crss@Vds):
233pF@15V
Number:
1 N-channel
Input Capacitance(Ciss):
4.4nF@15V
Pd - Power Dissipation:
27.8W
Gate Charge(Qg):
54.2nC@5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MATSUKI
119 Products
MATSUKI is dedicated to the research, development, and sales of electronic components. Utilizing advanced 0.25/0.18/0.13 μm process technology, it produces MOSFETs covering low, medium, and high voltage ranges. The main product lines include MOSFETs, analog integrated circuits, Schottky diodes, and passive components.
