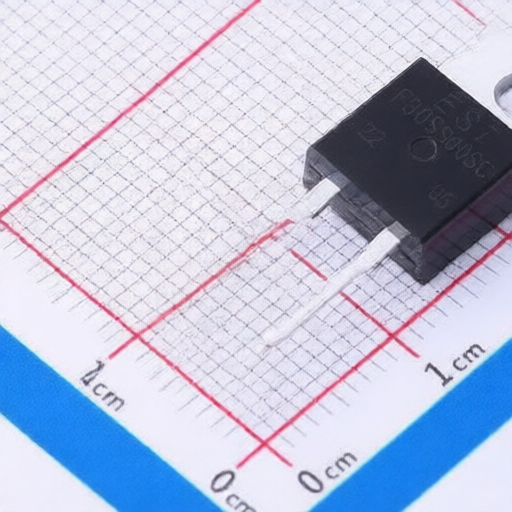

MASPOWER ESTF30SS60SC
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
ESTF30SS60SC
Package:
TO-220AC
Customer #:
Key Attributes:
Diode 600V 30A TO-220AC
Description:
300A 28ns 600V Independent 2V@30A 30A TO-220AC Single Diodes RoHS
Datasheet:
MASPOWER ESTF30SS60SC
Products Specifications
Manufacturer:
Package:
TO-220AC
Reverse Leakage Current (Ir):
10uA
Non-Repetitive Peak Forward Surge Current:
300A
Reverse Recovery Time (trr):
28ns
Operating Junction Temperature Range:
-55℃~+175℃
Voltage - DC Reverse (Vr) (Max):
600V
Diode Configuration:
Independent
Voltage - Forward(Vf@If):
2V@30A
Current - Rectified:
30A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
