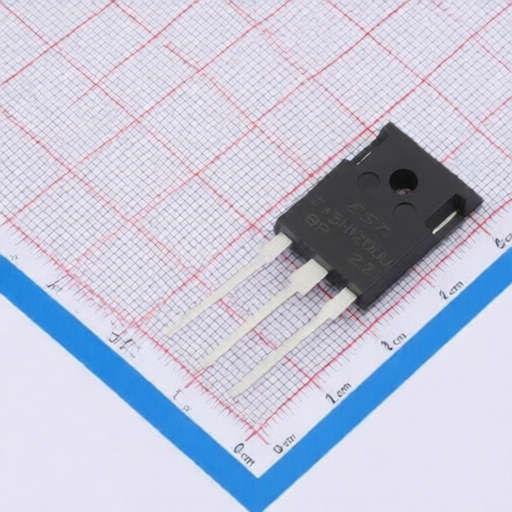

MASPOWER ESTF45H120UU
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
ESTF45H120UU
Package:
TO-247
Customer #:
Key Attributes:
Diode 1200V 45A TO-247
Description:
480A 9us 1.2kV 1.57V 45A TO-247 Single Diodes RoHS
Datasheet:
MASPOWER ESTF45H120UU
Products Specifications
Manufacturer:
Package:
TO-247
Non-Repetitive Peak Forward Surge Current:
480A
Reverse Leakage Current (Ir):
40uA
Reverse Recovery Time (trr):
9us
Operating Junction Temperature Range:
-40℃~+175℃
Voltage - DC Reverse (Vr) (Max):
1.2kV
Pd - Power Dissipation:
270W
Voltage - Forward(Vf@If):
1.57V
Current - Rectified:
45A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
