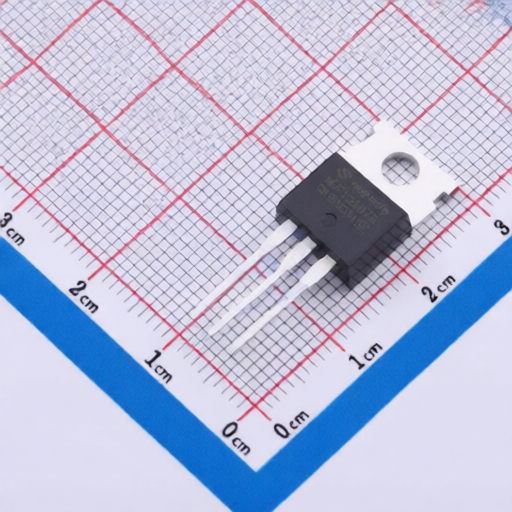

MagnaChip Semicon MDP15N075TH

MagnaChip Semicon MDP15N075TH

Name: MagnaChip Semicon MDP15N075TH
Brand: MagnaChip Semicon

Manufacturer: MagnaChip Semicon

Mfr. Part #: MDP15N075TH

Package: TO-220

Customer #:

Description: 150V 144A 6.2mΩ@10V 4.1V 312W TO-220 Single FETs, MOSFETs RoHS

Datasheet: MagnaChip Semicon MDP15N075TH

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MagnaChip Semicon

Package:

TO-220

Drain to Source Voltage:

150V

Current - Continuous Drain(Id):

144A

RDS(on):

6.2mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

4.1V

Reverse Transfer Capacitance (Crss@Vds):

94pF

Input Capacitance(Ciss):

6.22nF

Pd - Power Dissipation:

312W

Output Capacitance(Coss):

2.22nF

Gate Charge(Qg):

91nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
