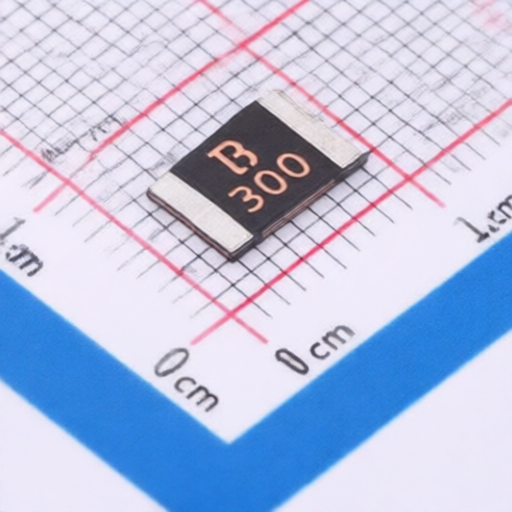

LUTE 2920L300/36GR
Manufacturer:
LUTE
Asian Brands
Mfr. Part #:
2920L300/36GR
Package:
2920
Customer #:
Key Attributes:
PTC RESET FUSE 36V 3A 2920
Description:
Polymeric PTC Resettable Fuse 36V 3A Surface Mount 2920
Datasheet:
LUTE 2920L300/36GR
Products Specifications
Category:
Manufacturer:
Package:
2920
Operating Temperature:
-40℃~+85℃
Voltage - Max:
36V
Hold Current:
3A
Pitch:
-
Current - Max:
40A
Power Dissipation:
2W
Trip Current:
5A
Time to Trip(Max):
20s
Resistance @ 25℃:
12mΩ
Resistance - Post Trip (R1) (Max):
48mΩ
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536100000 |
| USHTS | 8536100040 |
| TARIC | 8536109010 |
| CAHTS | 8536100000 |
| BRHTS | 85361000 |
| INHTS | 85361010 |
| MXHTS | 8536.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LUTE
642 Products
Shenzhen Lute Technology Co., Ltd.
(hereinafter referred to as "LUTE") is a high-tech enterprise dedicated to the design, research and development and sales of PPTC resettable fuses. The company's main products include PPTC resettable fuses, sensor-specific resettable fuses, Type-C resettable fuses, disposable fuses, etc., which are widely used in car systems, traffic signals, communication terminals, household appliances, smart wearables, precision instruments and other fields. The company insists on the parallel development of standardization and customization, has advanced precision testing instruments and professional production equipment, implements ISO 9001:2015 quality management system, and its products have passed the environmental protection requirements of RoHS and REACH. In addition, its core products have obtained UL, CUL, TUV and other safety certifications.
