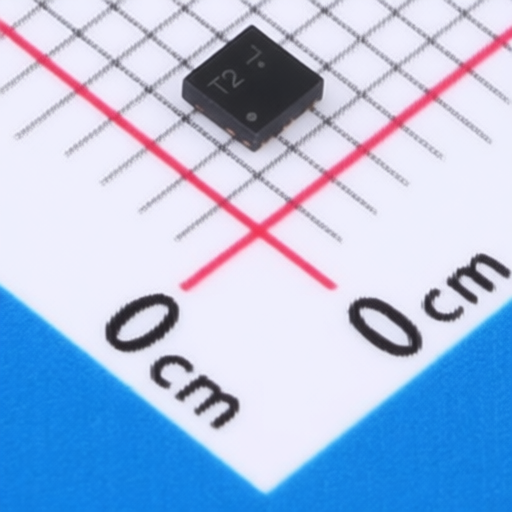

LRC S-LNP2010DT2AG
Manufacturer:
LRC
Asian Brands
Mfr. Part #:
S-LNP2010DT2AG
Package:
DFN2020-6D
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 20V DFN2020-6D
Description:
N-Channel+P-Channel Array 20V Surface Mount DFN2020-6D
Datasheet:
LRC S-LNP2010DT2AG
Products Specifications
Manufacturer:
Package:
DFN2020-6D
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4.7A;6A
Operating Temperature -:
-55℃~+150℃
RDS(on):
50mΩ
Gate Threshold Voltage (Vgs(th)):
850mV;1.2V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
84pF;59.6pF
Number:
1 N-Channel + 1 P-Channel
Input Capacitance(Ciss):
751pF;636pF
Pd - Power Dissipation:
1.38W
Output Capacitance(Coss):
91pF;62.8pF
Gate Charge(Qg):
13.9nC@10V;6.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LRC
1753 Products
Founded in 1970, Leshan Radio Co., Ltd. (abbreviated as LRC) is located in the historic and culture city--Leshan, the center of West China Development. It is a comprehensive electronic enterprise majored in manufacturing of discrete semiconductor devices. After decades of arduous efforts and hard work in China’s reform and opening up, LRC now has grown rapidly into an enterprise group with several wholly-owned subsidiaries and also joint-ventures.
