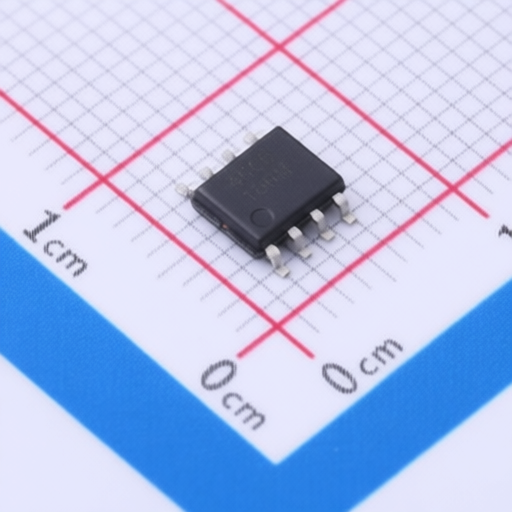

LRC LNP4606T1G
Manufacturer:
LRC
Asian Brands
Mfr. Part #:
LNP4606T1G
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 7A SOP-8
Description:
N-Channel+P-Channel Array 30V 7A 2.1W Surface Mount SOP-8
Datasheet:
LRC LNP4606T1G
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
7A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
81pF
Number:
1 N-Channel + 1 P-Channel
Pd - Power Dissipation:
2.1W
Input Capacitance(Ciss):
664pF
Output Capacitance(Coss):
90pF
Gate Charge(Qg):
18.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LRC
1753 Products
Founded in 1970, Leshan Radio Co., Ltd. (abbreviated as LRC) is located in the historic and culture city--Leshan, the center of West China Development. It is a comprehensive electronic enterprise majored in manufacturing of discrete semiconductor devices. After decades of arduous efforts and hard work in China’s reform and opening up, LRC now has grown rapidly into an enterprise group with several wholly-owned subsidiaries and also joint-ventures.
