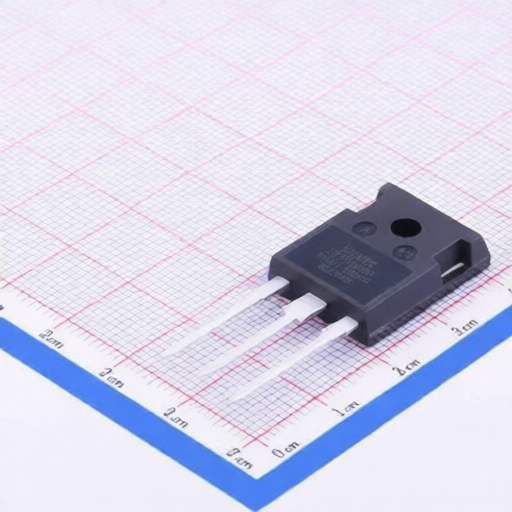

Littelfuse/IXYS IXFH74N20P
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXFH74N20P
Package:
TO-247AC-3
Customer #:
Description:
200V 74A 34mΩ@10V,37A 5V@4mA 1 N-channel 480W TO-247AC-3 Single FETs, MOSFETs RoHS
Datasheet:
Littelfuse/IXYS IXFH74N20P
Products Specifications
Manufacturer:
Package:
TO-247AC-3
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
74A
Operating Temperature -:
-55℃~+175℃
RDS(on):
34mΩ@10V,37A
Gate Threshold Voltage (Vgs(th)):
5V@4mA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
190pF
Number:
1 N-channel
Output Capacitance(Coss):
800pF
Input Capacitance(Ciss):
3.3nF
Pd - Power Dissipation:
480W
Gate Charge(Qg):
107nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse/IXYS
3888 Products
IXYS Corporation is a global supplier of power management semiconductors with a comprehensive range of Power MOSFET, IGBT, bipolar, and mixed-signal IC solutions that provide improved efficiency and reduced energy costs in a wide range of power system applications.
