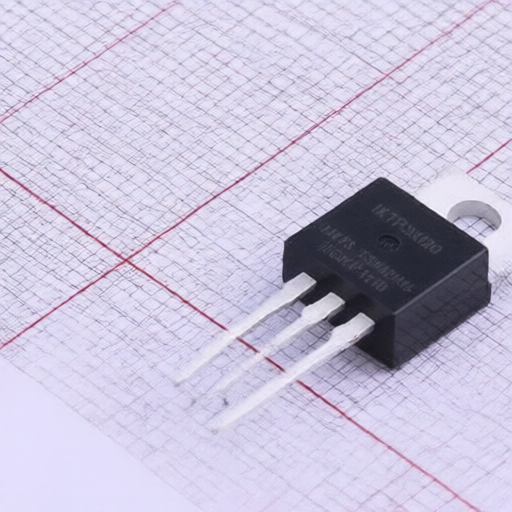

Littelfuse/IXYS IXTP3N120
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXTP3N120
Package:
TO-220AB-3
Customer #:
Key Attributes:
MOSFET N-CH 1.2kV 3A TO-220AB-3
Description:
N-Channel 1.2kV 3A 200W Through Hole TO-220AB-3
Datasheet:
Littelfuse/IXYS IXTP3N120
Products Specifications
Manufacturer:
Package:
TO-220AB-3
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
3A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
4.5Ω@10V,1.5A
Gate Threshold Voltage (Vgs(th)):
5V
Number:
1 N-channel
Input Capacitance(Ciss):
1.35nF@25V
Pd - Power Dissipation:
200W
Gate Charge(Qg):
42nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse/IXYS
3888 Products
IXYS Corporation is a global supplier of power management semiconductors with a comprehensive range of Power MOSFET, IGBT, bipolar, and mixed-signal IC solutions that provide improved efficiency and reduced energy costs in a wide range of power system applications.
