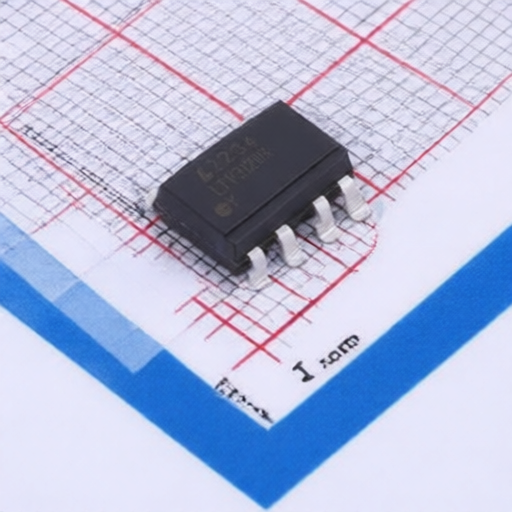

LITEON LTV-3120S-TA1-H
Manufacturer:
LITEON
Asian Brands
Mfr. Part #:
LTV-3120S-TA1-H
Package:
SOP-8-2.54mm
Customer #:
Key Attributes:
2.5 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage, High CMR
Description:
2.5A 5V 1.37V 15V~30V DC SOP-8-2.54mm Logic Output Optoisolators RoHS
Datasheet:
LITEON LTV-3120S-TA1-H
Products Specifications
Manufacturer:
Package:
SOP-8-2.54mm
Power Dissipation:
295mW
Output Current:
2.5A
Low Level Delay Time:
200ns
High Level Delay Time:
200ns
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.37V
Voltage - Supply:
15V~30V
Forward Current(If):
16mA
Operating Temperature:
-40℃~+105℃
CMTI(kV/us):
50kV/us
Number of Channels:
1
Input threshold current:
5mA
Isolation Voltage(Vrms):
5kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
