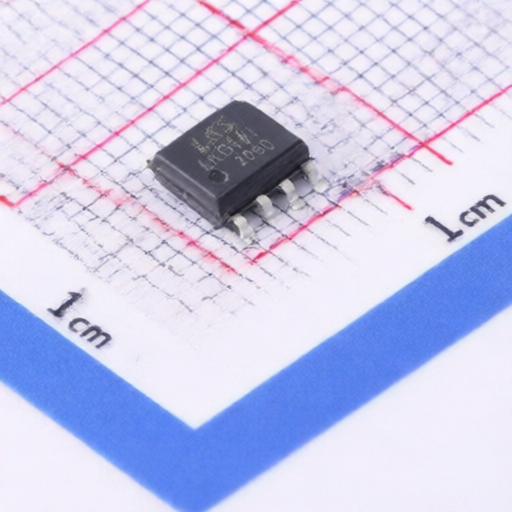

LINKOSEMI LKS561
Manufacturer:
LINKOSEMI
Asian Brands
Mfr. Part #:
LKS561
Package:
SOP-8
Customer #:
Key Attributes:
IC GATE DRVR HI/LOW SIDE SOP-8
Description:
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
Datasheet:
LINKOSEMI LKS561
Products Specifications
Manufacturer:
Package:
SOP-8
Operating Temperature:
-40℃~+150℃
Peak Output Current(Source):
1.2A
Peak Output Current(Sink):
1.5A
Rise Time:
600ns
Features:
Under Voltage Protection
Fall Time:
190ns
Quiescent Current(Iq):
300uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~25V
Driven Configuration:
High Side;Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LINKOSEMI
196 Products
LINKO Semiconductor Co., Ltd.
(hereinafter referred to as "LINKO") is a national high-tech enterprise focusing on the design of integrated circuits and overall solutions in the field of motion control. With motion control chips as its core business, the company has independently developed a series of chips such as SoCs, gate-level drivers, and power supplies for electronic control, which are used in automotive electronics, medical health, industrial control, and household appliances. LINKO is committed to prospering the electronic control ecosystem and leading the future of electronic control with stable products and excellent services.
