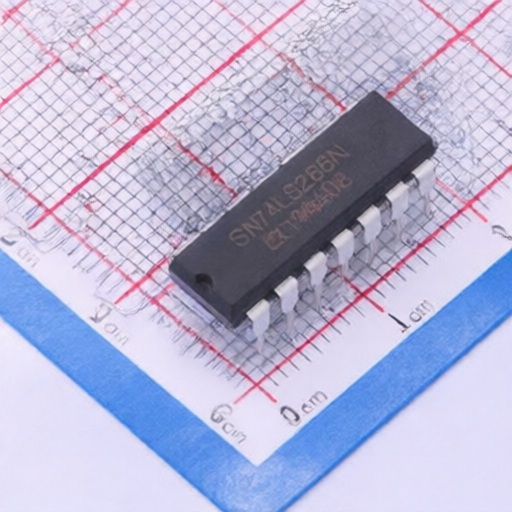

lingxingic SN74LS266N(LX)
Manufacturer:
lingxingic
Asian Brands
Mfr. Part #:
SN74LS266N(LX)
Package:
DIP-14
Customer #:
Key Attributes:
Quad 2-Input Exclusive-Nor Gate with Open-Drain Output
Description:
10uA 13ns@4.5V,50pF 2V~6V DIP-14 Gates and Inverters RoHS
Datasheet:
lingxingic SN74LS266N(LX)
Products Specifications
Manufacturer:
Package:
DIP-14
Logic Family:
74LS
Input Logic Level - Low:
500mV~1.8V
Operating Temperature:
-40℃~+125℃
Output Logic Level - Low:
100mV;330mV
Quiescent Current(Iq):
10uA
Propagation Delay:
13ns@4.5V,50pF
Voltage - Supply:
2V~6V
Current - Output High(IOH):
-
Number of Channels:
4;2
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
lingxingic
684 Products
Lingxingic, established in 1999, focuses on industrial-grade high-reliability logic devices. In 2021, Shenzhen Lingxing Chip Microelectronics Technology Co., Ltd. was founded. The company mainly produces general-purpose logic ICs, metering circuits, motor drivers, clock circuits, and power monitoring products.
