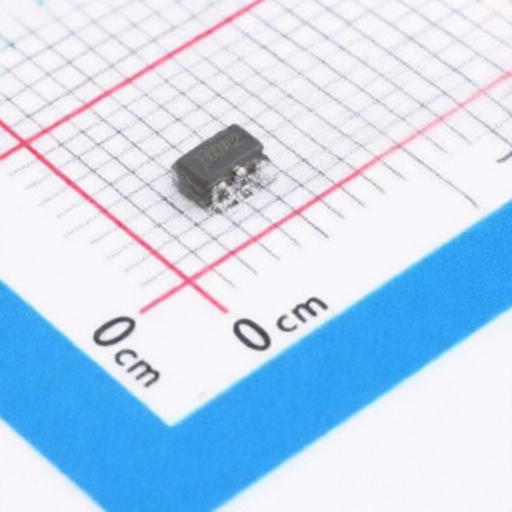

lingxingic INA180A2IDBVR(LX)
Manufacturer:
lingxingic
Asian Brands
Mfr. Part #:
INA180A2IDBVR(LX)
Package:
SOT-23-5
Customer #:
Key Attributes:
Zero-drift bidirectional current sense amplifier
Description:
25uV -200mV~30V 75uA 4V/us 100dB 2.7V~5.5V 210kHz 50V/V 1 SOT-23-5 Amplifiers RoHS
Datasheet:
lingxingic INA180A2IDBVR(LX)
Products Specifications
Manufacturer:
Package:
SOT-23-5
Vos - Input Offset Voltage:
25uV
Vcm - Common Mode Voltage:
-200mV~30V
Ib - Input Bias Current:
75uA
Slew Rate:
4V/us
Quiescent Current(Iq):
175uA
Common Mode Rejection Ratio(CMRR):
100dB
Output Current:
8mA
Operating Temperature:
-40℃~+125℃
Voltage - Supply:
2.7V~5.5V
Gain Bandwidth Product:
210kHz
Input Offset Voltage Drift(Vos TC):
1uV/℃
Gain:
50V/V
Maximum Power Supply Range (Vdd-Vss):
5.5V
Differential Voltage:
-30V~30V
Number of Channels:
1
Input Offset Current(Ios):
0.05uA
Noise density(eN):
40nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
lingxingic
684 Products
Lingxingic, established in 1999, focuses on industrial-grade high-reliability logic devices. In 2021, Shenzhen Lingxing Chip Microelectronics Technology Co., Ltd. was founded. The company mainly produces general-purpose logic ICs, metering circuits, motor drivers, clock circuits, and power monitoring products.
