Liansheng 1050200046
Manufacturer:
Liansheng
Asian Brands
Mfr. Part #:
1050200046
Package:
Through Hole,P=8.25mm
Customer #:
Description:
1x4P 20A -40℃~+130℃ Mid Terminal 12~22 1 8.25mm 4 Through Hole,P=8.25mm Barrier Blocks RoHS
Datasheet:

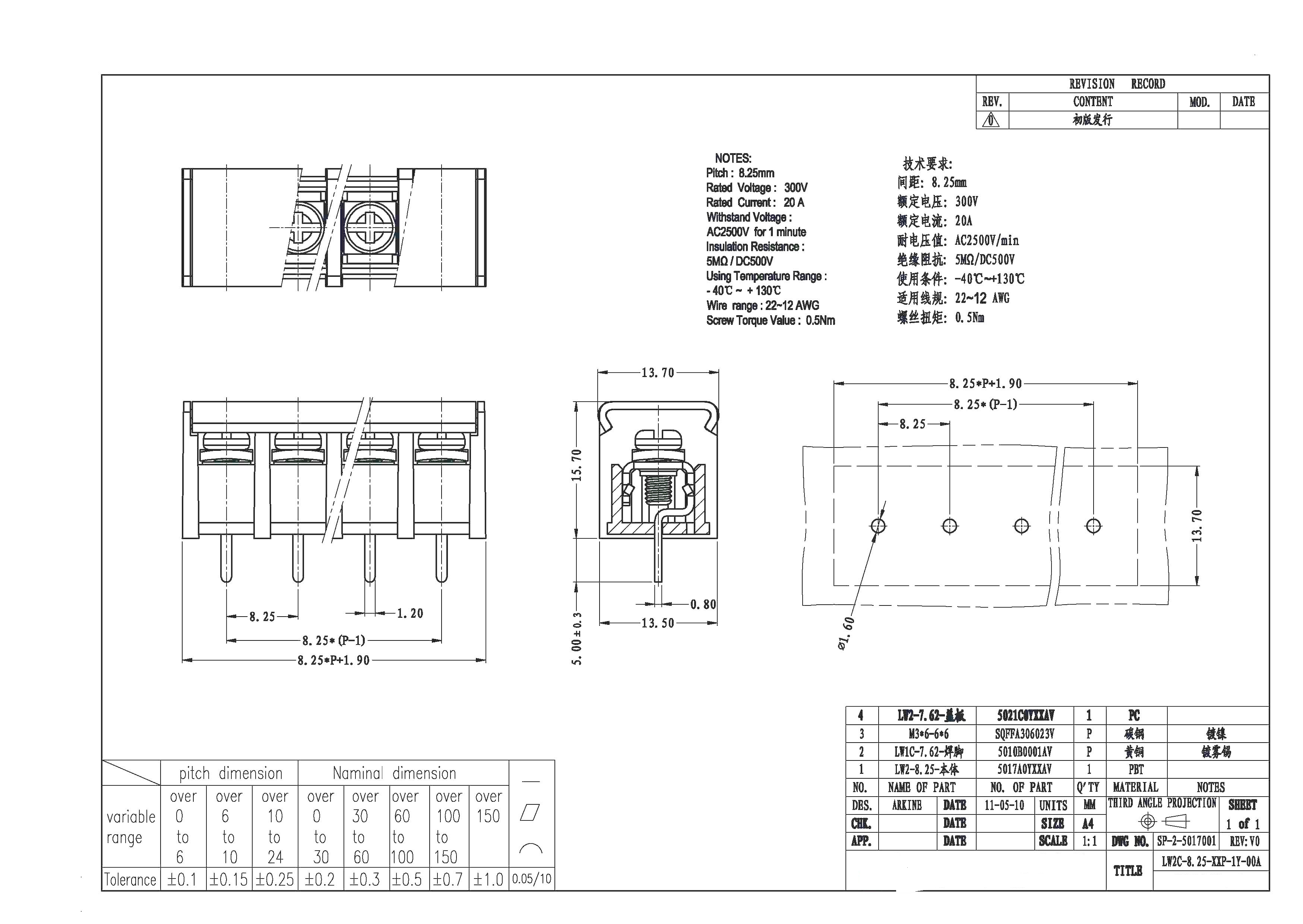

Liansheng 1050200046
Products Specifications
Manufacturer:
Package:
Through Hole,P=8.25mm
Number of Positions or Pins:
1x4P
Number of Pins:
4P
Current Rating:
20A
Operating Temperature:
-40℃~+130℃
Screw Specification:
M3
Pin Location:
Mid Terminal
Wire Gauge - AWG:
12~22
voltage:
300V
Number of Rows:
1
Pitch:
8.25mm
Number of PINs Per Row:
4
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
