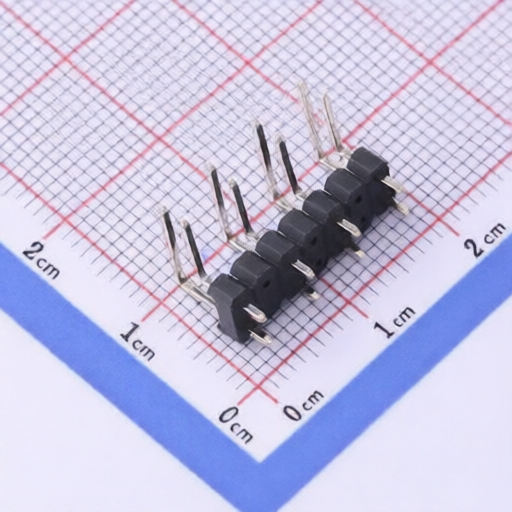

Liansheng PH-01552
Manufacturer:
Liansheng
Asian Brands
Mfr. Part #:
PH-01552
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER 14POS 2.54mm DUAL ROW SMD R/A
Description:
Pin Header 14 Position 2.54mm Pitch Dual Row
Datasheet:
Liansheng PH-01552
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Pins Structure:
2x7P
Number of Pins:
14P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Supplementary Features:
Missing Pin
Pitch:
2.54mm
Insulation Height:
5mm
Length of Mating Pin:
2.5mm
Current Rating-Signal:
3A
Number of Rows:
2
Mounting Type:
Right Angle
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Liansheng
1081 Products
Shenzhen Liansheng Precision Connector Co., Ltd.
(hereinafter referred to as "Liansheng") is a professional manufacturer of precision connectors, mainly producing and selling pin headers, female headers, simple headers, headers, SCSI, terminal blocks, Rj45, aviation connectors, wires, etc. These products are widely used in communications, industrial control, instrumentation, security, electrical equipment, mobile storage, LCD driver boards, digital home appliances and other fields. Liansheng focuses on the development policy of specialization and automation, coupled with scientific management methods and advanced quality inspection methods, and strives to provide customers with high-quality and low-priced products.
