Products Specifications
Manufacturer:
Package:

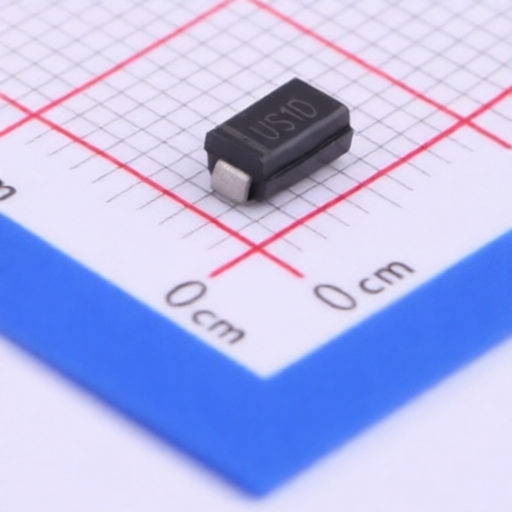

DO-214AC(SMA)
Non-Repetitive Peak Forward Surge Current:
30A
Reverse Leakage Current (Ir):
5uA@200V
Reverse Recovery Time (trr):
50ns
Voltage - DC Reverse (Vr) (Max):
200V
Diode Configuration:
Independent
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - Forward(Vf@If):
1V@1A
Current - Rectified:
1A
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LGE
1887 Products
Luguang Electronic Technology Co.,Ltd.
(hereinafter referred to as "LGE") was established in 2002, it is a national high-tech enterprises of discrete semiconductor design, manufacture and sell. With more than 21 years’ experience in engineering and manufacturing, LGE offers a full range of TVS diodes, zener diodes, Schottky diodes, silicon rectifiers and fast recovery rectifiers etc , which are exported to more than 100 countries and widely used in automotive electronics, consumer devices, intelligent manufacturing, security, industry and other fields. LGE’s production facility is fully compliant to current automotive and environmental standards such as IATF16949:2016, ISO9001:2015 and ISO14001:2015. All LGE products are fully compliant to the latest RoHS directive and the major products are UL certified. More than hundreds of products are compatible to ST、Vishay、Onsemi、NXP、ROHM etc. To serve worldwide customers better, LGE sets up branch offices and authorizes distributors in Europe,
