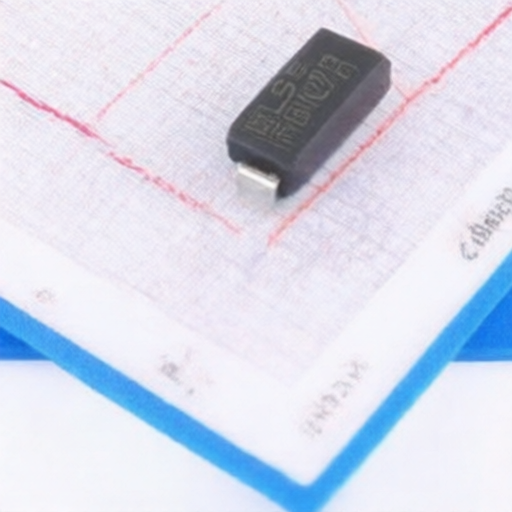

LGE BYG22B
Manufacturer:
LGE
Asian Brands
Mfr. Part #:
BYG22B
Package:
SMA
Customer #:
Key Attributes:
Ultrafast Avalanche SMD Rectifier
Description:
35A 25ns 1 Independent 100V 1.1V@2.0A 2A SMA Single Diodes RoHS
Datasheet:
LGE BYG22B
Products Specifications
Manufacturer:
Package:
SMA
Reverse Leakage Current (Ir):
1uA
Non-Repetitive Peak Forward Surge Current:
35A
Reverse Recovery Time (trr):
25ns
Diode Configuration:
1 Independent
Voltage - DC Reverse (Vr) (Max):
100V
Operating Junction Temperature Range:
-55℃~+150℃
Voltage - Forward(Vf@If):
1.1V@2.0A
Current - Rectified:
2A
Avalanche Energy:
20mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LGE
1887 Products
Luguang Electronic Technology Co.,Ltd.
(hereinafter referred to as "LGE") was established in 2002, it is a national high-tech enterprises of discrete semiconductor design, manufacture and sell. With more than 21 years’ experience in engineering and manufacturing, LGE offers a full range of TVS diodes, zener diodes, Schottky diodes, silicon rectifiers and fast recovery rectifiers etc , which are exported to more than 100 countries and widely used in automotive electronics, consumer devices, intelligent manufacturing, security, industry and other fields. LGE’s production facility is fully compliant to current automotive and environmental standards such as IATF16949:2016, ISO9001:2015 and ISO14001:2015. All LGE products are fully compliant to the latest RoHS directive and the major products are UL certified. More than hundreds of products are compatible to ST、Vishay、Onsemi、NXP、ROHM etc. To serve worldwide customers better, LGE sets up branch offices and authorizes distributors in Europe,
