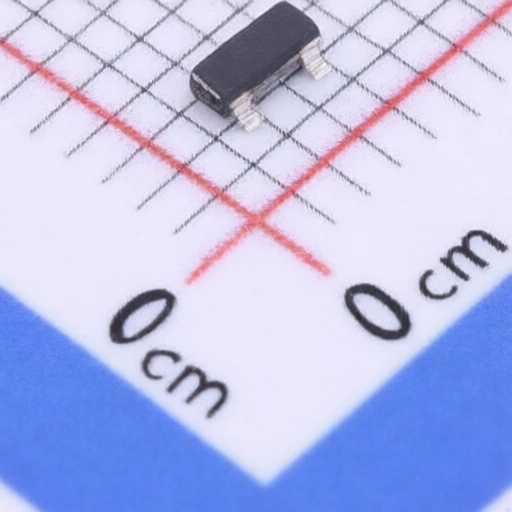

KY KY2302H
Manufacturer:
KY
Asian Brands
Mfr. Part #:
KY2302H
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 4A SOT-23
Description:
N-Channel 20V 4A 0.84W Surface Mount SOT-23
Datasheet:
KY KY2302H
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4A
RDS(on):
24mΩ@4.5V;29mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
700mV@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
86pF
Number:
1 N-channel
Output Capacitance(Coss):
125pF
Pd - Power Dissipation:
840mW
Input Capacitance(Ciss):
310pF
Gate Charge(Qg):
4nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KY
128 Products
Shenzhen KY Electronics Co., Ltd. specializes in the R&D and production of power semiconductor switching components and protective devices. The company was originally located in South Korea. With the rapid development and demand in China, in 2004, it built a modern production in Weihai City, Shandong Province. The base, the factory now covers an area of 20,000 square meters, with a construction area of 30,000 square meters.
The current production products include 1-100A single, bidirectional thyristor, protective device transient voltage suppression diode (TVS), Schottky diode (Schottky), low voltage MOS tube (MOSFET) and high voltage trigger diode (SIDAC), etc.
