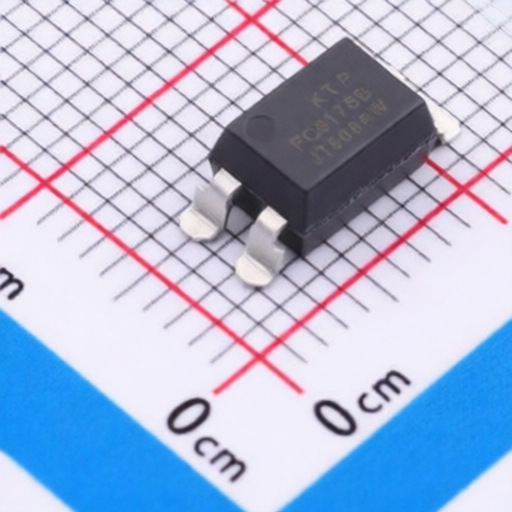

KTP PC817S1-B-TU-F-AW(KTP)

KTP PC817S1-B-TU-F-AW(KTP)

Name: KTP PC817S1-B-TU-F-AW(KTP)
Brand: KTP

Manufacturer: KTP Asian Brands

Mfr. Part #: PC817S1-B-TU-F-AW(KTP)

Package: SOP-4

Customer #:

Description: 50mA 100mV@20mA,1mA 80V 6V DC SOP-4 Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: KTP PC817S1-B-TU-F-AW(KTP)

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

KTP

Package:

SOP-4

Fall time:

3us

Output Current:

50mA

Rise time:

4us

Vce Saturation(VCE(sat)):

100mV@20mA,1mA

Operating Temperature:

-55℃~+110℃

Load Voltage:

80V

Reverse Voltage:

Current transfer ratio:

600%;50%

Forward Current(If):

60mA

Pd - Power Dissipation:

200mW

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

5kV

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

KTP

264 Products

Asian Brand

KTP, founded in Taiwan, China in 2012, is a national high-tech enterprise and an intellectual property management certified company. In 2023, it established its Asia-Pacific headquarters in Shenzhen. The company focuses on the design of advanced power device chips for industrial and automotive grades, mainly producing diodes, thyristors, MOSFETs, IGBTs, and optocouplers.
