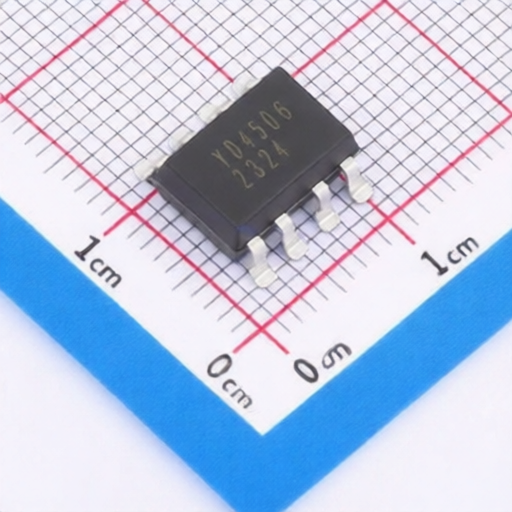

KTP HCPL-4506-C5L0
Manufacturer:
KTP
Asian Brands
Mfr. Part #:
HCPL-4506-C5L0
Package:
SMD-8P
Customer #:
Key Attributes:
Intelligent Power Module and Gate Drive Interface Optocoupler
Description:
30V 1.8V 4.5V~30V DC SMD-8P Logic Output Optoisolators RoHS
Datasheet:
KTP HCPL-4506-C5L0
Products Specifications
Manufacturer:
Package:
SMD-8P
Power Dissipation:
145mW
Load Voltage:
30V
Output Current:
-
Low Level Delay Time:
650ns
High Level Delay Time:
400ns
Voltage - Forward(Vf):
1.8V
Current transfer ratio:
44%
Voltage - Supply:
4.5V~30V
Operating Temperature:
-40℃~+100℃
CMTI(kV/us):
30kV/us
Number of Channels:
1
Input threshold current:
800uA
Isolation Voltage(Vrms):
3.75kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KTP
264 Products
KTP, founded in Taiwan, China in 2012, is a national high-tech enterprise and an intellectual property management certified company. In 2023, it established its Asia-Pacific headquarters in Shenzhen. The company focuses on the design of advanced power device chips for industrial and automotive grades, mainly producing diodes, thyristors, MOSFETs, IGBTs, and optocouplers.
