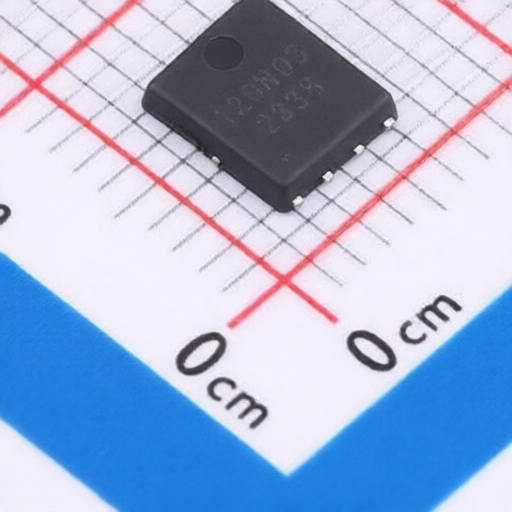

KTP BSC120N03
Manufacturer:
KTP
Asian Brands
Mfr. Part #:
BSC120N03
Package:
PDFN-8L(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 30V 120A PDFN-8L(5x6)
Description:
N-Channel 30V 120A 68W Surface Mount PDFN-8L(5x6)
Datasheet:
KTP BSC120N03
Products Specifications
Manufacturer:
Package:
PDFN-8L(5x6)
Configuration:
-
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
120A
RDS(on):
2.1Ω@10V,20A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.2V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
350pF@15V
Number:
1 N-channel
Input Capacitance(Ciss):
3.833nF@15V
Output Capacitance(Coss):
437pF
Pd - Power Dissipation:
68W
Gate Charge(Qg):
72nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KTP
264 Products
KTP, founded in Taiwan, China in 2012, is a national high-tech enterprise and an intellectual property management certified company. In 2023, it established its Asia-Pacific headquarters in Shenzhen. The company focuses on the design of advanced power device chips for industrial and automotive grades, mainly producing diodes, thyristors, MOSFETs, IGBTs, and optocouplers.
