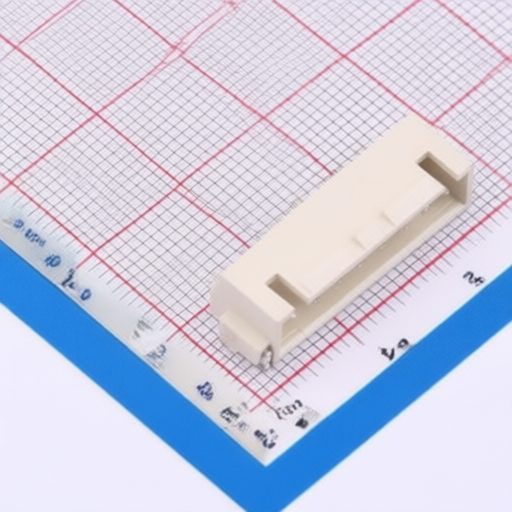

kinghelm KH-A2504-08AWB
Manufacturer:
kinghelm
Asian Brands
Mfr. Part #:
KH-A2504-08AWB
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 8POS 2.54mm
Description:
Connector Header 8 position 2.54mm Pitch Surface Mount, Right Angle
Datasheet:
kinghelm KH-A2504-08AWB
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
7.8mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x8P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
2.54mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
8
Number of Rows:
1
Z-Height of the Board:
6.1mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
