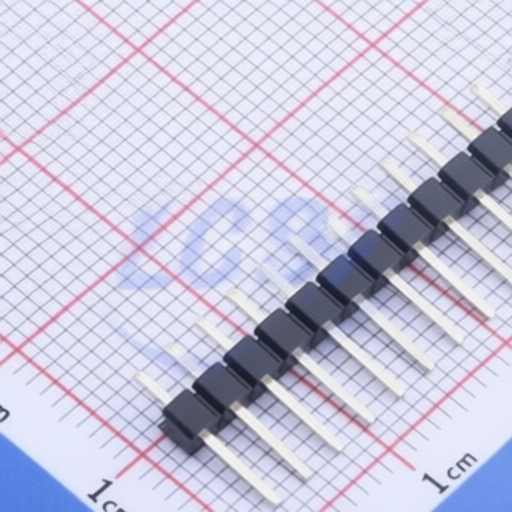

kinghelm KH-2.54PH180-1X13P-L11.5
Manufacturer:
kinghelm
Asian Brands
Mfr. Part #:
KH-2.54PH180-1X13P-L11.5
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 13POS 2.54mm SINGLE ROW TH
Description:
Pin Header 13 Position 2.54mm Pitch Single Row Through Hole -40℃~+105℃
Datasheet:
kinghelm KH-2.54PH180-1X13P-L11.5
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Number of Pins:
13P
Pins Structure:
1x13P
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Voltage Rating (Max):
-
Length of End Connection Pin:
3mm
Number of Rows:
1
Current Rating-Signal:
3A
Mounting Type:
Through Hole
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
