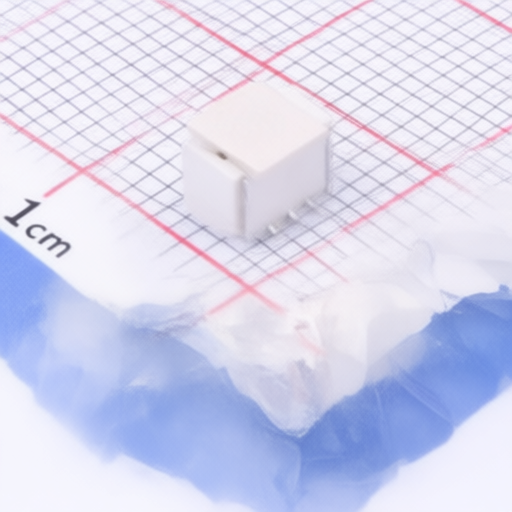

kinghelm KH-A1001LF-03A
Manufacturer:
kinghelm
Mfr. Part #:
KH-A1001LF-03A
Package:
SMD,P=1mm
Customer #:
Description:
Connector Header 3 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Datasheet:
kinghelm KH-A1001LF-03A
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.1mm
Pins Structure:
1x3P
Reference Series:
-
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
3
Number of Rows:
1
Z-Height of the Board:
3.7mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
