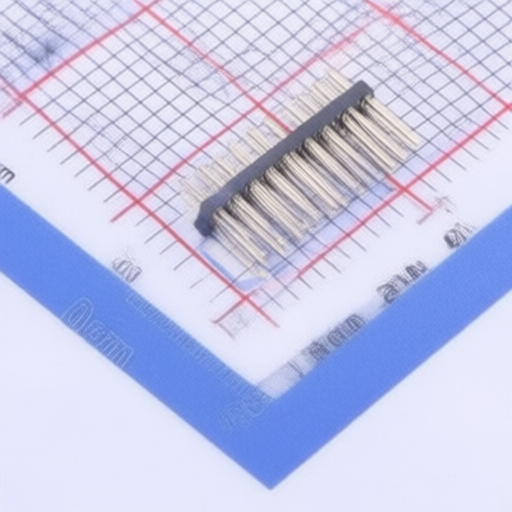

kinghelm KH-1.27PH180-2X10P-L7.2
Manufacturer:
kinghelm
Asian Brands
Mfr. Part #:
KH-1.27PH180-2X10P-L7.2
Package:
Through Hole,P=1.27mm
Customer #:
Key Attributes:
CONN HEADER 20POS 1.27mm DUAL ROW TH
Description:
20P 2x10P -40℃~+105℃ Pin Header 1.27mm 1mm 3.9mm 2.3mm 2 1A Through Hole 1.27mm Through Hole,P=1.27mm Headers, Male Pins RoHS
Datasheet:
kinghelm KH-1.27PH180-2X10P-L7.2
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.27mm
Number of Pins:
20P
Pins Structure:
2x10P
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
-
Pitch:
1.27mm
Insulation Height:
1mm
Length of Mating Pin:
3.9mm
Voltage Rating (Max):
-
Length of End Connection Pin:
2.3mm
Number of Rows:
2
Current Rating-Signal:
1A
Mounting Type:
Through Hole
Row Spacing:
1.27mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
